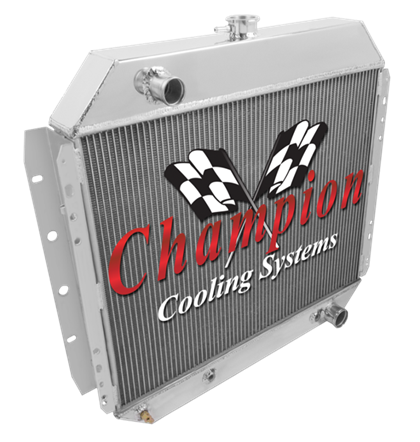

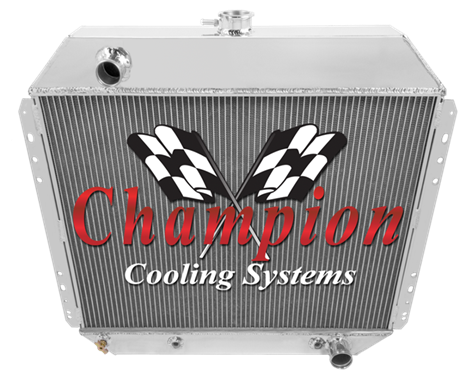

CORE DIM (H x W) |
OVERALL (H x W) |
HOSE LOCATIONS |
HOSE FITTINGS |
FILL NECK |
TRANS COOLER |
MOUNTING TYPE |
| |
19 1/4 x 26 3/8 |
26 3/8 x 29 1/2 |
In - Driver, Out - Passenger |
In - 1 1/2, Out - 1 3/4 |
Yes |
1/2-20 Straight Thread,
Inverted Flare |
Bracket Mount |
| |
|
|
|
|
|
|
|
| |
APPLICATION |
ENGINES |
|
|
3 ROW CORE THICKNESS |
3 ROW TANK THICKNESS |
| |
Ford Bronco - 1978-79 |
w/Chevy Conversion |
|
|
2 1/2" |
2 1/2" |
| |
Ford F Series Truck - 1968-69 |
w/Chevy Conversion |
|
|
|
|
| |
Ford F Series Truck - 1970-72 |
w/Chevy Conversion |
|
|
4 ROW CORE THICKNESS |
4 ROW TANK THICKNESS |
| |
Ford F Series Truck - 1973-75 |
w/Chevy Conversion |
|
|
2 3/4" |
3 1/8" |
| |
Ford F Series Truck - 1976 |
w/Chevy Conversion |
|
|
|
|
| |
Ford F Series Truck - 1977-79 |
w/Chevy Conversion |
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
