Champion Cooling Catalog

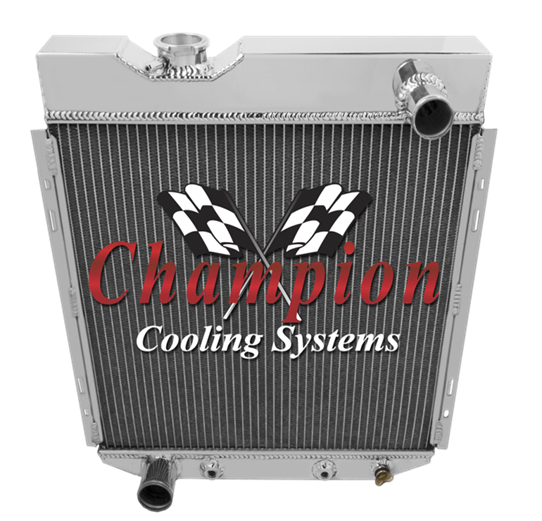

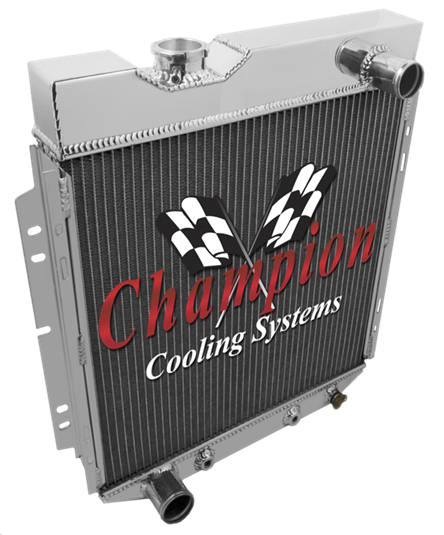

CORE DIM (H x W)

OVERALL (H x W)

HOSE LOCATIONS

HOSE FITTINGS

TRANS COOLER

FILL NECK

MOUNTING TYPE

BRACKET SPECS

16 3/8 x 17 1/4

21 3/4 x 19 5/8

In - Passenger, Out - Driver

In - 1 1/2, Out - 1 3/4

1/8-27 NPT

Yes

Bracket Mount

Vert - 9 7/8 Horizontal - 18 1/2

APPLICATION

ENGINES

2 ROW CORE THICKNESS

2 ROW TANK THICKNESS

1960-1965 Ford Falcon

2.4L 144ci L6, 2.8L 170ci L6,

1 1/2"

3.3L 200ci L6, 3.6L 221ci V8,

4.3L 260ci V8, 4.7L 289ci V8

3 ROW CORE THICKNESS

3 ROW TANK THICKNESS

1964-1966 Ford Mustang

2.8L 170ci L6, 3.3L 200ci L6,

B CORE 2 1/2"

2 3/4"

4.3L 260ci V8, 4.7L 289ci V8

1960-1965 Ford Ranchero

2.4L 144ci L6, 2.8L 170ci L6,

4 ROW CORE THICKNESS

4 ROW TANK THICKNESS

3.3L 200ci L6, 4.3L 260ci V8,

2 3/4"

3 1/8"

4.7L 289ci V8

1961-1965 Mercury Comet

2.4L 144ci L6, 2.8L 170ci L6,

3.3L 200ci L6, 3.6L 221ci V8,

4.3L 260ci V8, 4.7L 289ci V8,

7.0L 427ci V8

NOTE: Designed for V8 Engine Swaps. Verify hose configuration for your application before purchasing. (Upper Passenger and Lower Driver)
