Core Dim (H x W)
Overall (H x W)
Hose Locations
Hose Fittings
Fill Neck
Trans Cooler
Mounting Specs
Mounting Type
18" x 28"
20" x 33"
In - Passenger, Out - Driver
In - 1 1/2", Out - 1 3/4"
Yes
N/A
N/A
Saddle Mount
Application
3 Row Core Thickness
3 Row Tank Thickness

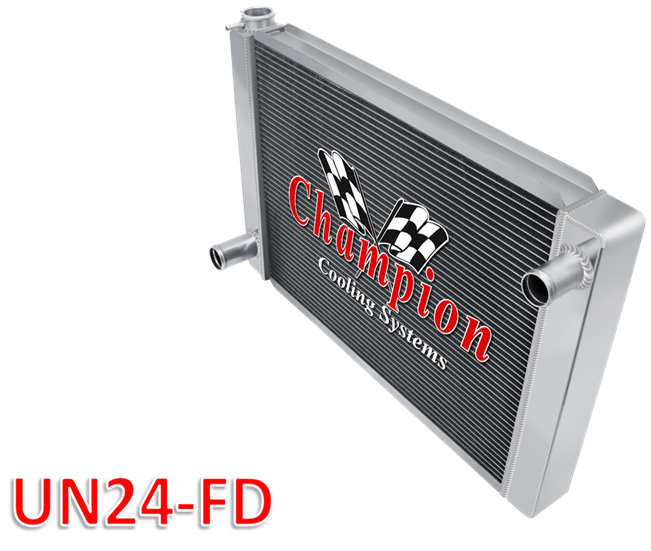

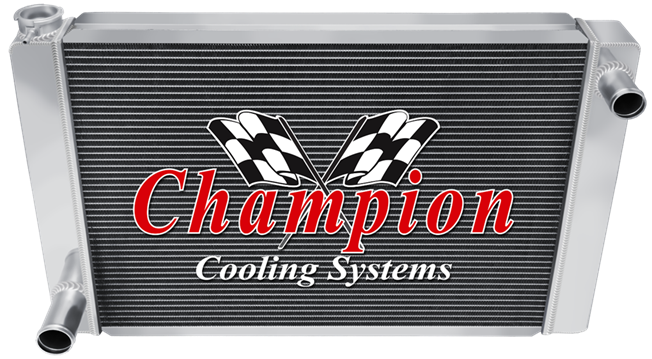

Universal Crossflow 28" Core
2 1/4"
3"
NOTE: Typical to all Universal Radiators, ours do not include provisions for a drain petcock.
