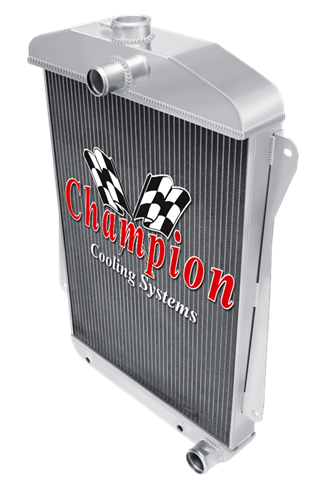

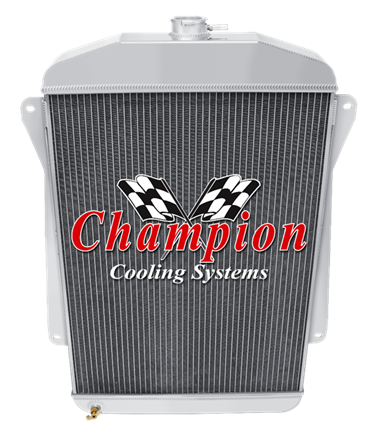

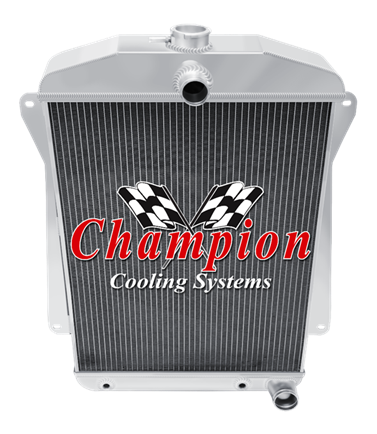

CORE DIM (H x W) |
OVERALL (H x W) |
HOSE LOCATIONS |
HOSE FITTINGS |
FILL NECK |
TRANS COOLER |
MOUNTING TYPE |
| |
21 1/2" x 20 3/4" |
27 5/8" x 24
3/4" |
In - Dual, Out - Dual |
In - 1 1/4, Out - 1 3/4 |
Yes |
No |
Bracket Mount |
| |
|
|
|
|
|
|
|
| |
Application |
Engines |
|
|
3 ROW CORE THICKNESS |
3 ROW TANK THICKNESS |
| |
1942 - 1947 Ford 1 Ton Pickup |
2.0L 120ci L4, 3.6L
221ci V8 |
|
|
2 1/4" |
2 1/2" |
| |
3.7L 226ci L6, 3.9L 239ci V8 |
|
|
|
|
| |
1942 - 1947 Ford 1/2 Ton Pickup |
2.0L 120ci L4, 3.6L
221ci V8 |
|
|
|
|
| |
3.7L 226ci L6, 3.9L 239ci V8 |
|
|
|
|
| |
1942 - 1947 Ford 3/4 Ton Pickup |
2.0L 120ci L4, 3.6L
221ci V8 |
|
|
|
|
| |
3.7L 226ci L6, 3.9L 239ci V8 |
|
|
|
|
| |
1948 - 1952 Ford F1 |
3.7L 226ci L6, 3.9L
239ci V8 |
|
|
|
|
| |
4.2L 255ci V8 |
|
|
|
|
| |
1948 - 1952 Ford F2 |
3.7L 226ci L6, 3.9L
239ci V8 |
|
|
|
|
| |
4.2L 255ci V8 |
|
|
|
|
| |
1948
- 1952 Ford F3 |
3.7L 226ci L6, 3.9L
239ci V8 |
|
|
|
|
| |
4.2L 255ci V8 |
|
|
|
|
| |
Notes: For Flathead Configuration |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
