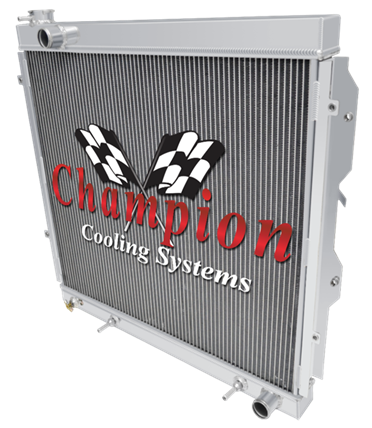

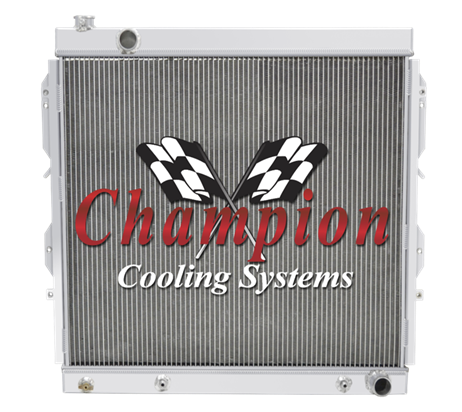

CORE DIM (H x W) |
OVERALL (H x W) |
HOSE LOCATIONS |
HOSE FITTINGS |
FILL NECK |
TRANS COOLER |
MOUNTING TYPE |
| |
16 1/4 x 24 |
21 3/4 x 25 1/4 |
In - Passenger, Out - Driver |
In - 1 1/2, Out - 1 3/4 |
Yes |
1/8-27 NPT |
Saddle Mount |
| |
|
|
|
|
|
|
|
| |
APPLICATION |
ENGINES |
|
|
3 ROW CORE THICKNESS |
3 ROW TANK THICKNESS |
| |
Ford Fairlane - 1967 |
390ci V8 |
|
|
2 1/4" |
2 1/2" |
| |
Ford Fairlane - 1968-69 |
390ci v8, 429ci V8 |
|
|
|
|
| |
Ford Mustang - 1967-68 |
390ci V8 |
|
|
4 ROW CORE THICKNESS |
4 ROW TANK THICKNESS |
| |
Ford Mustang - 1969-70 |
390ci V8, 428ci V8, 429ci V8 |
|
|
2 3/4" |
3 1/8" |
| |
Ford Ranchero - 1967 |
390ci V8 |
|
|
|
|
| |
Ford Ranchero - 1968-69 |
390ci v8, 429ci V8 |
|
|
|
|
| |
Mercury Cougar/XR7 - 1968 |
390ci V8 |
|
|
|
|
| |
Mercury Cougar/XR7 - 1969 |
390ci V8, 428ci V8 |
|
|
|
|
| |
Mercury Cougar/XR7 - 1970 |
428ci V8, 429ci V8 |
|
|
|
|
| |
68-69 Ford Torino |
428ci |
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
