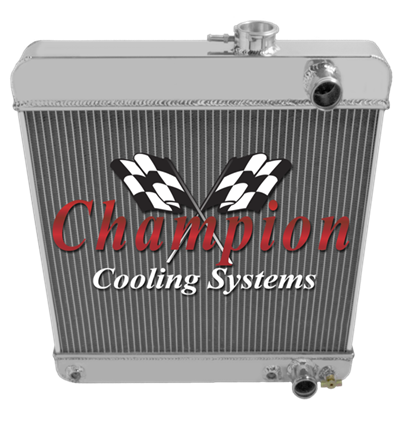

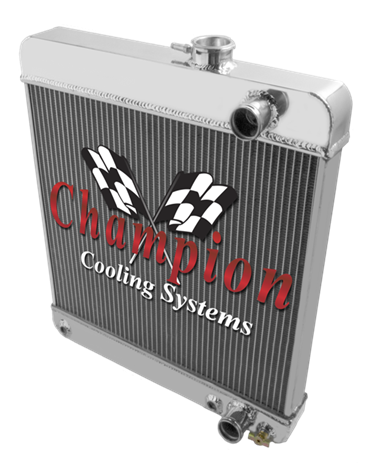

CORE DIM  (H x W)	OVERALL  (H x W)	HOSE LOCATIONS	HOSE FITTINGS	FILL NECK	TRANS COOLER	MOUNTING TYPE
	17 1/2 x 25	23 5/8 x 25 5/8	In - Driver, Out - Passenger	In - 1 1/2, Out - 1 3/4	Yes	1/2-20 Straight Thread, Inverted Flare	Saddle Mount
	APPLICATION		ENGINES			3 ROW CORE THICKNESS	3 ROW TANK THICKNESS
	Tempest 1964-65		5.3 V8			2 1/4"	2 1/2"
	GTO 1964-65		5.3 V8
	Lemans 1964-65		5.3 V8			4 ROW CORE THICKNESS	4 ROW TANK THICKNESS
						2 3/4"	3 1/8"
