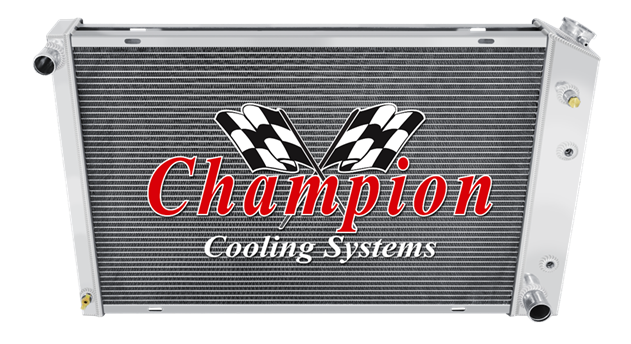

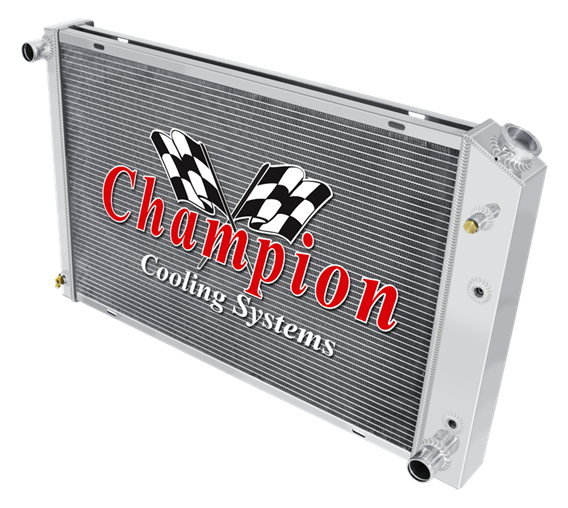

CORE DIM  (H x W)

OVERALL  (H x W)

HOSE LOCATIONS

HOSE FITTINGS

TRANS COOLER

MOUNTING TYPE

14 1/2" x 23 5/8"

16 3/8" x 29 1/8"

In - Driver / Out - Pass

In -1 1/4 Out - 1 3/8

1/2-20 Straight Thread, Inverted Flare

SADDLE MOUNT

APPLICATION

ENGINES

3 ROW CORE THICKNESS

3 ROW TANK THICKNESS

84-90 CORVETTE

SMALL BLOCK V8

2 1/4"

2 1/2"

CHEVY S10

V8 CONVERSION

2 ROW CORE THICKNESS

2 ROW TANK THICKNESS

1 1/2"

2 1/2"
