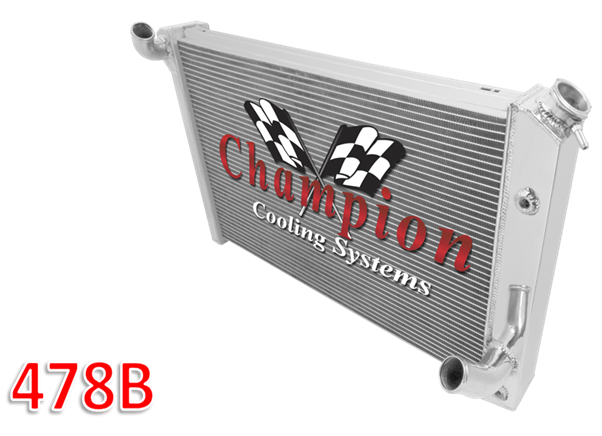

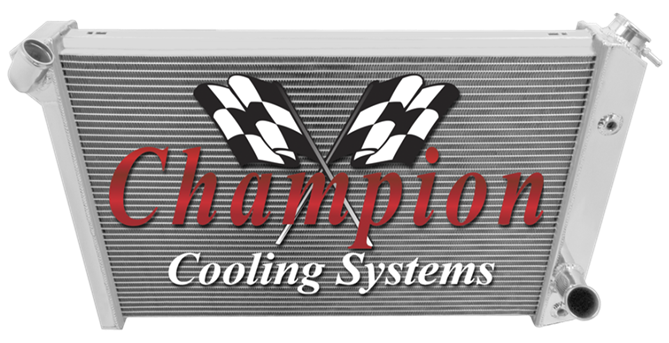

CORE DIM (H x W) |
OVERALL (H x W) |
HOSE LOCATIONS |
HOSE FITTINGS |
FILL NECK |
TRANS COOLER |
MOUNTING TYPE |
|
| |
18 3/4 x 27 5/8 |
24 1/8 x 31 |
In - Off-Set Passenger, Out -
Passenger |
In - 1 1/2, Out - 1 3/4 |
Yes |
1/8-27 NPT |
Bracket Mount |
|
| |
|
|
|
|
|
|
|
|
| |
NOTE: THIS ALSO FITS ALL
APPLICATIONS FOR DPI 509 |
|
|
3 ROW CORE THICKNESS |
3 ROW TANK THICKNESS |
|
| |
|
|
2 1/4" |
2 3/4" |
|
| |
|
|
|
|
|
|
|
|
| |
APPLICATION |
ENGINES |
|
|
4 ROW CORE THICKNESS |
4 ROW TANK THICKNESS |
|
| |
1975 -1978 Chrysler Cordoba |
6.6L 400ci V8 |
|
|
2 3/4" |
3 1/8" |
|
| |
1973 - 1978 Dodge Charger |
6.6L 400ci V8, 7.2L 440ci V8 |
|
|
|
| |
1973 - 1976 Dodge Coronet |
6.6L 400ci V8, 7.2L 440ci V8 |
|
|
|
| |
1978 Dodge Magnum |
6.6L 400ci V8 |
|
|
|
| |
1977 - 1978 Dodge Monaco |
6.6L 400ci V8, 7.2L 440ci V8 |
|
|
|
| |
1976 - 1978 Plymouth Fury |
6.6L 400ci V8, 7.2L 440ci V8 |
|
|
|
|
|
| |
1976 - 1977 Plymouth Gran Fury |
6.6L 400ci V8, 7.2L 440ci V8 |
|
|
|
|
|
| |
1973, 1975 Plymouth
Roadrunner |
6.6L 400ci V8, 7.2L 440ci V8 |
|
|
|
|
|
| |
1973 Plymouth Satellite |
6.6L 400ci V8 |
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
