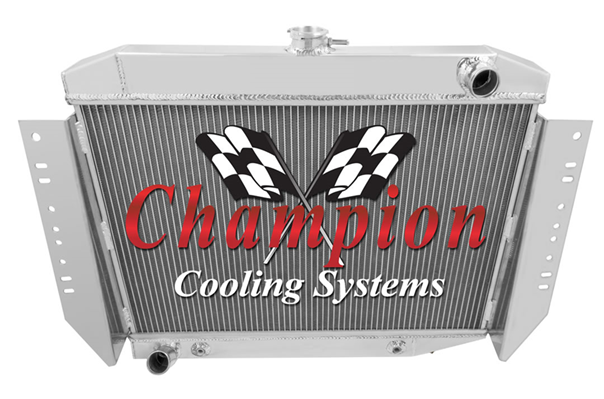

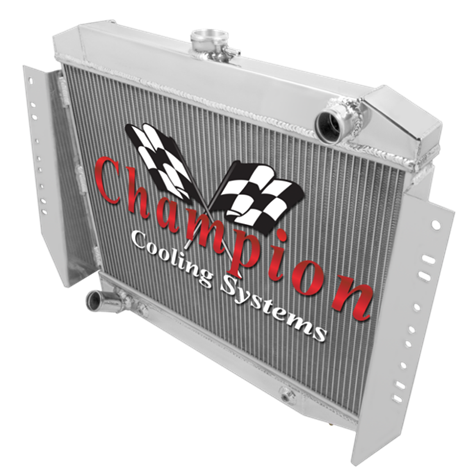

CORE DIM (H x W) |
OVERALL (H x W) |
HOSE LOCATIONS |
HOSE FITTINGS |
TRANS COOLER |
MOUNTING TYPE |
BRACKET |
|
24 1/4" x 26 3/8" |
31 1/8" x 30 1/2" |
In - Passenger, Out - Driver |
In - 1 3/4", Out - 2" |
1/8-27 NPT |
Bracket |
29 1/4" |
|
|
Application |
Engine |
|
3 Row Core Thickness |
3 Row Tank Thickness |
|
68 - 77
Ford F Series Truck |
360ci 5.9L, 390ci 6.4L, 460ci 7.5L |
|
2 1/4" |
Upper - 4", Lower 3" |
|
|
2 Row Core Thickness |
2 Row Tank Thickness |
|
1 1/2" |
Upper - 4 1/16", Lower 3" |
|
|
4 Row Core Thickness |
4 Row Tank Thickness |
|
2 3/4" |
Upper - 4 1/16", Lower 3 1/8" |
|
|
|
|
|
|
|
|
