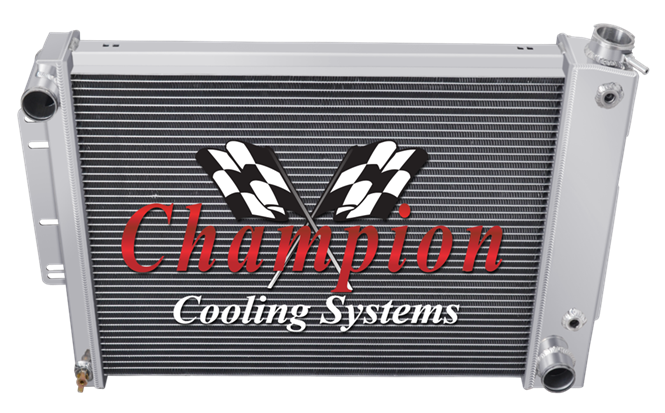

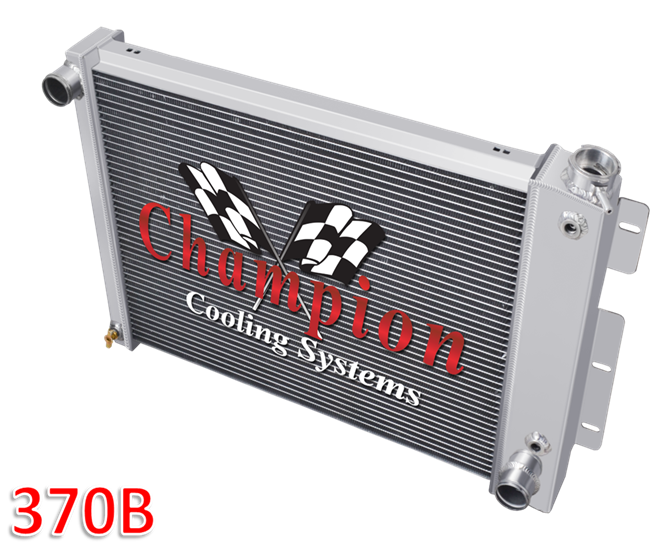

CORE DIM (H x W)

OVERALL (H x W)

HOSE LOCATIONS

HOSE FITTINGS

TRANS COOLER

FILL NECK

MOUNTING TYPE

BRACKET SPECS

16 x 24 1/4

21 3/4 x 25 1/4

In - Passenger, Out - Driver

In - 1 -1/2, Out - 1 -3/4

1/8-27 NPT

Yes

Saddle Mount

Vert - 9 7/8 Horizontal - 24 3/4

APPLICATION

ENGINES

NOTE: VERIFY HOSE CONFIGURATIONS AND CORE SIZE

3 ROW CORE THICKNESS

3 ROW TANK THICKNESS

Ford Fairlane - 1967

390ci V8

2 1/4"

2 1/2"

Ford Fairlane - 1968-69

390ci v8, 429ci V8

Ford Mustang - 1967-68

390ci V8

2 ROW CORE THICKNESS

2 ROW TANK THICKNESS

Ford Mustang - 1969-70

390ci V8, 428ci V8, 429ci V8

1 1/2"

2 5/8"

Ford Ranchero - 1967

390ci V8

Ford Ranchero - 1968-69

390ci v8, 429ci V8

4 ROW CORE THICKNESS

4 ROW TANK THICKNESS

Mercury Cougar/XR7 - 1968

390ci V8

2 3/4"

3 1/8"

Mercury Cougar/XR7 - 1969

390ci V8, 428ci V8

Mercury Cougar/XR7 - 1970

428ci V8, 429ci V8

68-69 Ford torino

428ci
