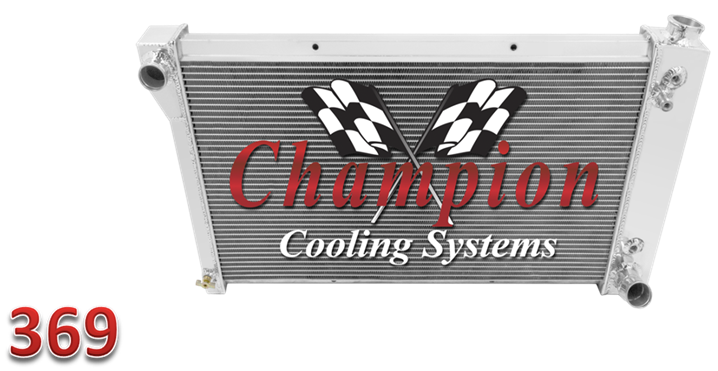

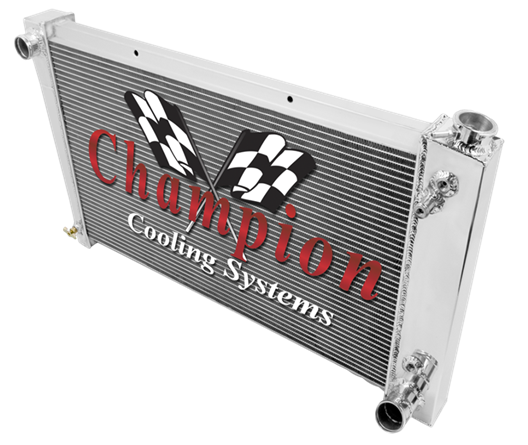

CORE DIM (H x W) |
OVERALL (H x W) |
HOSE LOCATIONS |
HOSE FITTINGS |
TRANS COOLER |
FILL NECK |
MOUNTING TYPE |
BRACKET SPECS |
|
17 1/2 x 26 |
23 5/8 x 28 3/4 |
In - Driver, Out - Passenger |
In 1 -1/2 - Out 1- 3/4 |
1/8-27 NPT |
Yes |
Bracket Mount |
27 3/4 |
|
|
APPLICATION |
ENGINES |
|
NOTE: VERIFY HOSE CONFIGURATIONS
AND CORE SIZE |
|
3 ROW CORE THICKNESS |
3 ROW TANK THICKNESS |
|
Dodge Challenger - 1970-74 |
ALL SMALL BLOCKS |
|
|
B CORE 2 1/2" |
2 3/4" |
|
Dodge Charger - 1968-73 |
ALL SMALL BLOCKS |
|
|
|
Dodge Coronet - 1968 -73 |
ALL SMALL BLOCKS |
|
|
2 ROW CORE THICKNESS |
2 ROW TANK THICKNESS |
|
Plymouth Barracuda - 1970-73 |
ALL SMALL BLOCKS |
|
|
1 1/2" |
2 3/4" |
|
Plymouth Belvedere - 1970 |
ALL SMALL BLOCKS |
|
|
|
Plymouth Roadrunner - 1968-73 |
ALL SMALL BLOCKS |
|
|
4 ROW CORE THICKNESS |
4 ROW TANK THICKNESS |
|
Plymouth Satellite - 1968-73 |
ALL SMALL BLOCKS |
|
|
2 3/4" |
3 1/8" |
|
Plymouth GTX "Small Block" 1968-72 |
ALL SMALL BLOCKS |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
