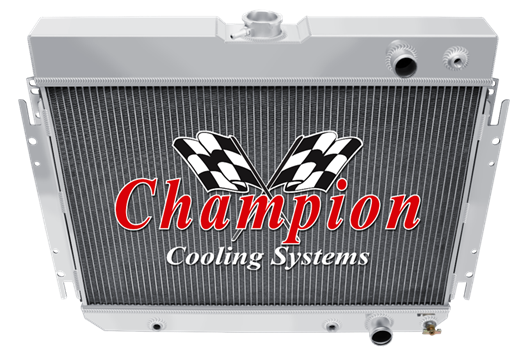

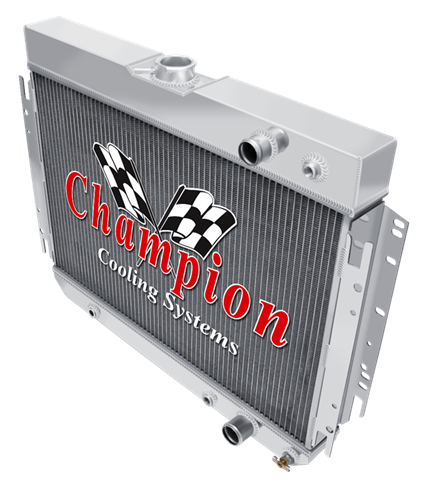

CORE DIM (H x W)

OVERALL (H x W)

HOSE LOCATIONS

HOSE FITTINGS

FILL NECK

TRANS COOLER

MOUNTING TYPE

BRACKET SPECS

17 x 20 3/4

19 1/4 x 28 3/4

In - Driver, Out - Passenger

In - 1 -1/2, Out - 1 -3/4

Yes

1/2-20 Straight Thread, Inverted Flare

Flanges

Horizontal - 27 1/4

NOTE: Can be used as a crossflow for all 281 and 289 applications.

2 ROW CORE THICKNESS

2 ROW TANK THICKNESS

1 1/2"

Will not fit Factory Shroud for 281 and 289 applications

3 ROW CORE THICKNESS

3 ROW TANK THICKNESS

B CORE 2 1/2"

2 3/4"

APPLICATION

ENGINES

Chevy Camaro (Small Block) - 1967-69

4.1l L6, 305ci V8, 307ci V8, 327ci V8, 350ci V8

4 ROW CORE THICKNESS

4 ROW TANK THICKNESS

Pontiac Firebird/Trans Am - 1967-69

4.1l L6, 305ci V8, 307ci V8, 327ci V8, 350ci V8

2 3/4"

3 1/8"
