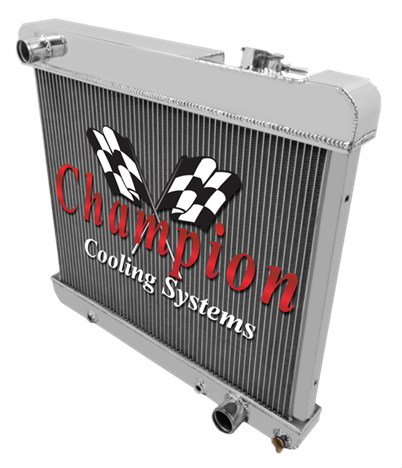

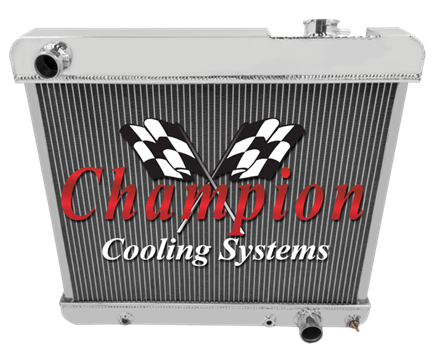

CORE DIM (H x W) |
OVERALL (H x W) |
HOSE LOCATIONS |
HOSE FITTINGS |
TRANS COOLER |
Fill Neck |
MOUNTING TYPE |
BRACKET SPECS |
|
16 x 25 1/4 |
22 1/4 x 27 3/4 |
In - Driver, Out - Passenger |
In - 1 1/2, Out - 1 3/4 |
1/2-20 Straight Thread,
Inverted Flare |
Yes |
Bracket Mount |
Vert - 10 1/2, Horizontal - 26
3/4 |
|
|
|
|
|
|
|
|
|
|
APPLICATION |
ENGINES |
|
|
|
NOTE: WILL FIT ALL #281
APPLICATIONS BUT WILL NOT MOUNT FACTORY SHROUD |
|
1963 - 1968 Chevrolet Bel Air |
3.8L 230ci L6, 4.1L 250ci L6 |
|
|
|
|
4.6L 283ci V8 |
|
|
|
|
1963 - 1968 Chevrolet Biscayne |
3.8L 230ci L6, 4.1L 250ci L6 |
|
|
|
|
|
|
1966 - 1968 Chevrolet Caprice |
4.1L 250ci L6, 4.6L
283ci V8 |
|
|
|
3 ROW CORE THICKNESS |
3 ROW TANK THICKNESS |
|
5.3L 327ci V8, 5.4L 327ci V8 |
|
|
|
B CORE 2 1/2" |
2 3/4" |
|
1964 - 1967 Chevrolet Chevelle |
4.6L 283ci V8, 6.5L 396ci V8 |
|
|
|
|
|
|
1964 - 1967 Chevrolet El Camino |
3.2L 194ci L6, 3.8L
230ci L6 |
|
|
|
|
|
4.1L 250ci L6, 4.6L 283ci V8 |
|
|
|
|
|
5.3L 327ci V8, 6.5L 396ci V8 |
|
|
|
|
|
|
1963
- 1968 Chevrolet Impala |
3.8L 230ci L6, 4.1L 250ci L6 |
|
|
|
|
4.6L 283ci V8, 5.3L 327ci V8 |
|
|
|
|
5.4L 327ci V8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
