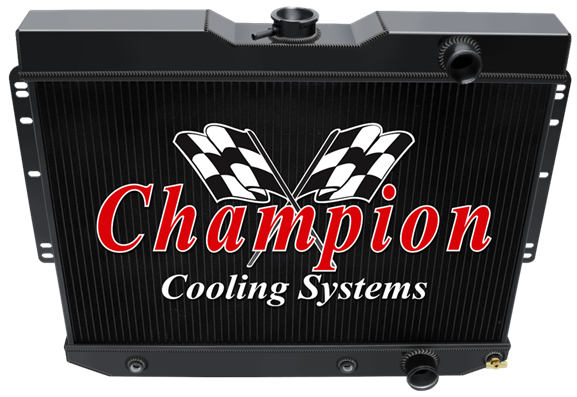

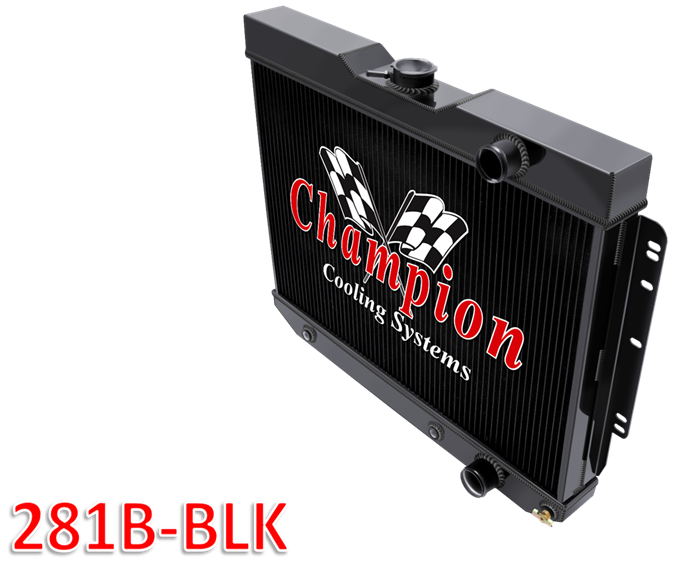

CORE DIM (H x W) |
OVERALL (H x W) |
HOSE LOCATIONS |
HOSE FITTINGS |
Fill Neck |
TRANS COOLER |
MOUNTING TYPE |
| |
17 3/8" x 22 3/4" |
23 3/8" x 25" |
In - Driver , Out - Passenger |
In - 1 1/2, Out - 1 3/4 |
Yes |
1/2-20 Straight Thread,
Inverted Flare |
Saddle Mount |
| |
|
|
|
|
|
|
|
| |
NOTE: SLIGHT MODIFICATION OF SADDLE MOUNTS MAY BE REQUIRED |
| |
|
|
|
|
|
|
|
| |
Application |
Engines |
|
|
3 ROW CORE THICKNESS |
3 ROW TANK THICKNESS |
| |
1963 - 1966 Chevrolet C10 Pickup |
4.6L 283ci V8 |
|
|
2 1/4" |
2 3/4" |
| |
1963 - 1966 Chevrolet C20 Pickup |
4.6L 283ci V8 |
|
|
|
|
| |
1963 - 1966 Chevrolet C30 Pickup |
4.6L 283ci V8 |
|
|
2 ROW CORE THICKNESS |
2 ROW TANK THICKNESS |
| |
1963 - 1966 Chevrolet K10 Pickup |
4.6L 283ci V8 |
|
|
1 1/2" |
2 3/8" |
| |
1963 - 1966 Chevrolet K20 Pickup |
4.6L 283ci V8 |
|
|
|
|
| |
1966 GMC 1000 |
4.1L 250ci L6, 5.0L
305ci V6 |
|
|
4 ROW CORE THICKNESS |
4 ROW TANK THICKNESS |
| |
1963
- 1965 GMC 1000 Series |
3.8L 230ci L6, 4.6L 283ci V8, |
|
|
2 3/4" |
3 1/8" |
| |
4.8ci 292ci L6, 5.0L 305ci V6, |
|
|
|
|
| |
5.7L 351ci V6 |
|
|
|
|
| |
1966 GMC 1500 |
4.1L 250ci L6 |
|
|
|
|
| |
1963
- 1965 GMC 1500 Series |
3.8L 230ci L6, 4.6L 283ci V8, |
|
|
|
|
| |
4.8ci 292ci L6, 5.0L 305ci V6, |
|
|
|
|
| |
5.7L 351ci V6 |
|
|
|
|
| |
1966 GMC 2500 |
4.1L 250ci L6 |
|
|
|
|
| |
1963
- 1965 GMC 2500 Series |
3.8L 230ci L6, 4.6L 283ci V8, |
|
|
|
|
| |
4.8ci 292ci L6, 5.0L 305ci V6, |
|
|
|
|
| |
5.7L 351ci V6 |
|
|
|
|
| |
1963
- 1966 GMC 3000 |
3.8L 230ci L6, 4.1L 250ci L6 |
|
|
|
|
| |
4.6L 283ci V8, 4.8ci 292ci L6, |
|
|
|
|
| |
5.0L 305ci V6, 5.7L 351ci V6 |
|
|
|
|
| |
1963
- 1966 GMC 3500 |
3.8L 230ci L6, 4.1L 250ci L6 |
|
|
|
|
| |
4.6L 283ci V8, 4.8ci 292ci L6, |
|
|
|
|
| |
5.0L 305ci V6, 5.7L 351ci V6 |
|
|
|
|
| |
1964 GMC B3500 |
5.0L 305ci V6 |
|
|
|
|
| |
1966 GMC K1000 |
5.0L 305ci V6, 5.7L
351ci V6 |
|
|
|
|
| |
1966 GMC K100 Pickup |
5.0L 305ci V6 |
|
|
|
|
| |
1966 GMC K15/K1500 Pickup |
5.0L 305ci V6, 5.7L
351ci V6 |
|
|
|
|
| |
1966 GMC P1000 |
3.2L 194ci L6, 3.8L
230ci L6 |
|
|
|
|
| |
1963 - 1966 GMC PB1000 Series |
3.2L 194ci L6, 3.8L
230ci L6 |
|
|
|
|
| |
1966 GMC PB15 Series |
4.1L 250ci L6, 4.8L
292ci L6 |
|
|
|
|
| |
1963
- 1965 GMC PB1500 Series |
3.8L 230ci L6, 4.8ci 292ci L6, |
|
|
|
|
| |
5.0L 305ci V6 |
|
|
|
|
| |
1966 GMC PB25 Series |
4.1L 250ci L6, 4.8L 292ci L6 |
|
|
|
|
| |
1963
- 1965 GMC PB2500 Series |
3.8L 230ci L6, 4.8ci 292ci L6, |
|
|
|
|
| |
5.0L 305ci V6 |
|
|
|
|
| |
1963
- 1966 GMC Suburban |
3.8L 230ci L6, 4.6L
283ci V8, |
|
|
|
|
| |
4.8ci 292ci L6, 5.0L 305ci V6, |
|
|
|
|
| |
5.7L 351ci V6 |
|
|
|
|
| |
1961 - 1966 Pontiac Bonneville |
6.4L 389ci V8, 6.9L 421ci V8 |
|
|
|
|
| |
1961 - 1964 Pontiac Catalina |
6.4L 389ci V8, 6.9L
421ci V8 |
|
|
|
|
| |
1962 - 1964 Pontiac Grand Prix |
6.4L 389ci V8, 6.9L
421ci V8 |
|
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
