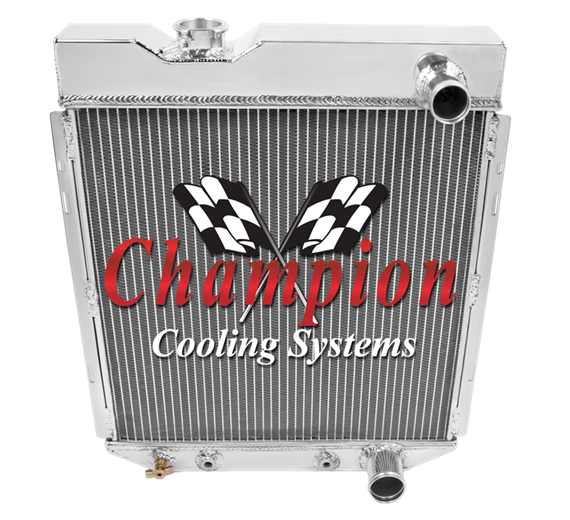

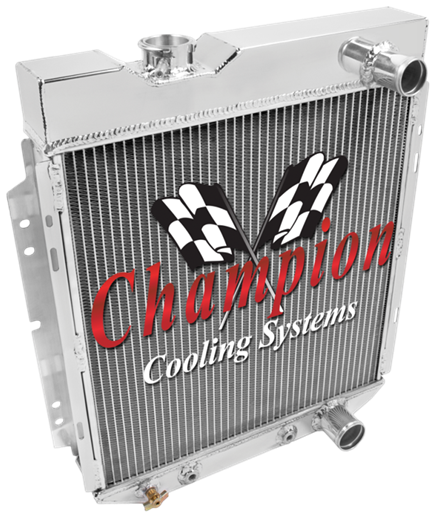

CORE DIM (H x W) |
OVERALL (H x W) |
HOSE LOCATIONS |
HOSE FITTINGS |
TRANS COOLER |
Fill Neck |
Mounting Specs |
Mounting Type |
|
| |
16 1/4" x 24 3/4 |
21 1/2" x
28" |
In - Passenger, Out - Passenger |
In - 1 1/2, Out - 1 3/4 |
1/2-20 Straight Thread,
Inverted Flare |
Yes |
26 7/8" |
Brackets |
|
| |
|
|
|
|
|
|
|
|
|
|
|
| |
Application |
Engines |
|
NOTE: WILL FIT ALL #289
APPLICATIONS BUT WILL NOT MOUNT FACTORY SHROUD |
|
3 ROW CORE THICKNESS |
3 ROW TANK THICKNESS |
|
| |
1963 - 1965 Chevrolet Bel Air |
3.8L 230ci L6, 4.1L
250ci L6, |
|
|
B CORE 2 1/2" |
2 3/4" |
|
| |
4.6L 283ci V8, 5.3L 327ci V8 |
|
|
|
|
|
| |
1960 - 1965 Chevrolet Biscayne |
3.8L 230ci L6, 3.9L 236ci L6, |
|
|
|
|
|
| |
4.1L 250ci L6, 4.6L 283ci V8 |
|
|
|
|
|
| |
5.3L 237ci V8 |
|
|
|
|
|
| |
1964 - 1965 Chevrolet Chevelle |
3.2L 194ci L6, 3.8L 230ci L6, |
|
|
|
|
|
| |
4.6L 283ci V8, 5.3L 327ci V8 |
|
|
|
|
|
| |
1959 - 1965 Chevrolet El Camino |
3.2L 194ci L6, 3.8L 230ci L6, |
|
|
|
|
|
| |
4.6L 283ci V8, 5.3L 327ci V8 |
|
|
|
|
|
| |
1959 - 1963 Chevrolet Impala |
3.8L 230ci L6, 4.6L 283ci V8, |
|
|
|
|
|
|
|
|
| |
5.3L 327ci V8 |
|
|
|
|
|
|
|
|
| |
1959 - 1961 Cheverolet Kingswood |
3.8L 230ci L6, 4.6L 283ci V8 |
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
