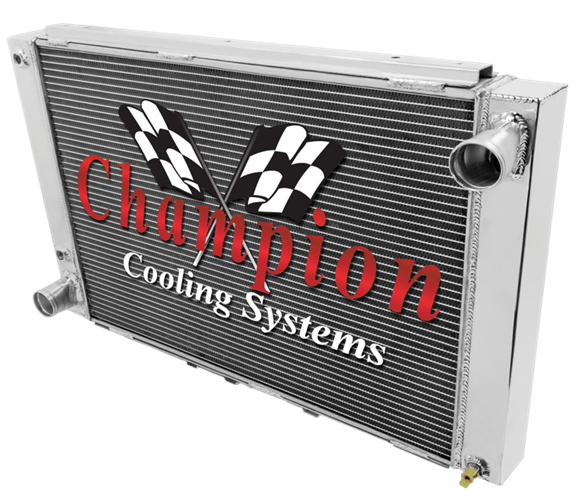

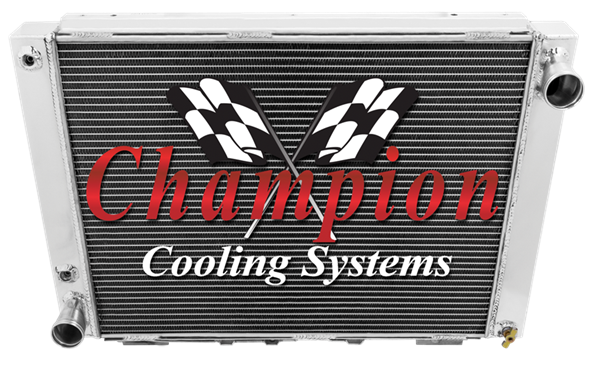

CORE DIM (H x W) |
OVERALL (H x W) |
HOSE LOCATIONS |
HOSE FITTINGS |
TRANS COOLER |
FILL NECK |
MOUNTING TYPE |
BRACKET SPECS |
| |
16 x 23 1/4 |
21 1/4 x 26 3/8 |
In - Passenger, Out - Passenger |
In -1 1/2, Out - 1 3/4 |
1/2-20 Straight Thread, Inverted Flare |
Yes |
Bracket |
Vert- 12 1/4, Horizontal - 25 |
| |
|
|
|
|
|
|
|
|
| |
APPLICATION |
ENGINE |
|
|
|
2 ROW CORE THICKNESS |
2 ROW TANK THICKNESS |
| |
1965 Chevrolet Bel Air |
4.6L 283ci V8, 5.3L
327ci V8 |
|
|
|
1 1/2" |
2 1/2" |
| |
1965 Chevrolet Biscayne |
4.6L 283ci V8, 5.3L 327ci V8 |
|
|
|
|
| |
1964 Chevrolet Impala |
4.6L 283ci V8, 5.3L
327ci V8 |
|
|
|
3 ROW CORE THICKNESS |
3 ROW TANK THICKNESS |
| |
Note: For vehicles without air conditioning. |
|
|
|
2 1/4" |
2 1/2" |
| |
|
|
|
|
|
| |
1962
- 1965 Chevrolet Chevy II |
2.5L 153ci L4, 3.2L
194ci L6, |
|
|
|
4 ROW CORE THICKNESS |
4 ROW TANK THICKNESS |
| |
3.8L 230ci L6, 4.6L 283ci V8, |
|
|
|
2 3/4 |
3 1/8 |
| |
5.3L 327 V8 |
|
|
|
|
|
| |
Note: This is not a drop in
replacement but will fit with modifications to the brackets. |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
